ISO9001 black Plastic black box for installing fiber optic compents

Certification : ISO9001

Place of Origin : Shenzhen

MOQ : 10

Price : USD0.2

Payment Terms : Western Union, T/T

Packaging Details : Carton box

color : black

Material : Plastic

Application : for fiber optic compents

Contact Now

Plastic box material,size,color could designed by customer

Feature:

Low noise

Low CSO Degradation

Perfect condition monitoring interface

High stability and reliability

Application:

Frame type optical fiber amplifier system

CATV

Light distribution system

Specification/Optical performance inditiors

Parameter	Symbol	MIN	Typical value	MAx	Units
Operting Wavelength	c	1530	1550	1562	nm
Saturated output power(1)	Po	13	----	24	dBm
Output Power	Pi	-3	----	+10	dBm
Gain	G	----	20	----	dB
Noise figure(2)	NF	----	4.5	----	dB
Out power stability	Po	----	+0.05	+0.1	dB
Return loss	RL	----	----	-45	dB
Polarization-Dependent Gain	PDG	----	----	0.3	dB
Polarisation mode dispersion	PMD	----	----	0.5	ps

Specification/Performance Indicators

Parameter	Symbol	MIN	Typical value	MAX	Units
Power supply voltage	Tw	3.0/4.5	3.2/5.0	3.5/5.5	VAC
Power Dissipation	Ts	----	----	30	W

Specafication/Environmental Performance Indicators

Parameter	Symbol	MIN	Typical value	MAX	Units
Operating Temperature	Tw	-5	----	60	℃
Storage Temperature	Ps	-40	----	60	℃
Temperature	----	10	----	85	%

Order Infomation

Product

Struct types

Application

Output Power

Output Power(1)

Output port

Power

Connector

M:module

10:Machine Size

150x125x19mm

2:EDFA

1:-3~10dBm...

9:others

13:13dBm...

22:22dBm

1:1port

2:2port

7:5VDC

8:3.3VDC

1:SC/UPC

2:SC.APC

3:FC/UPC

4:FC/APC

5.LC/UPC

6:LC/APC

ISO9001 black Plastic black box for installing fiber optic compents

Product Tags:

ftth splitter box

ftth terminal box

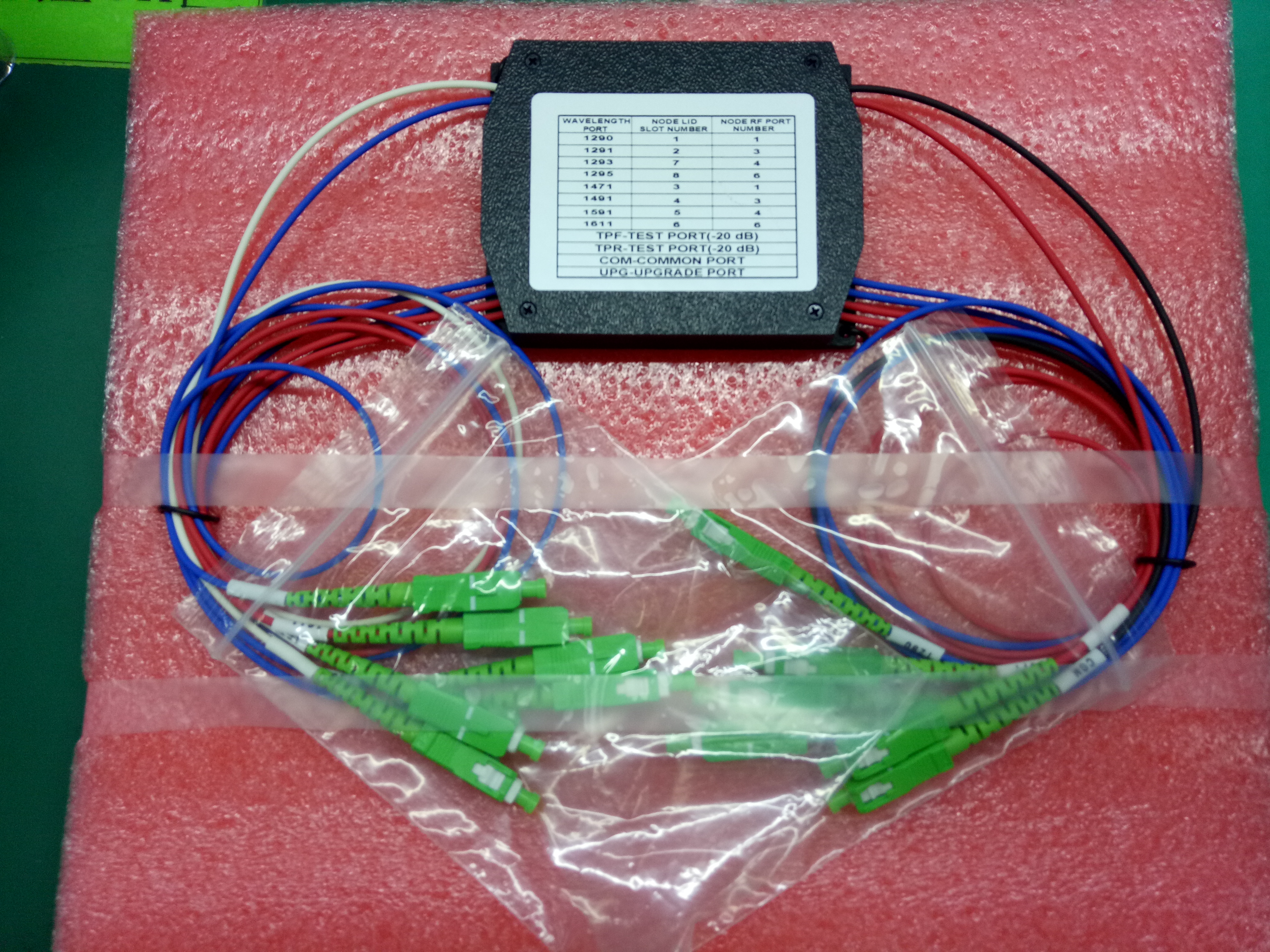

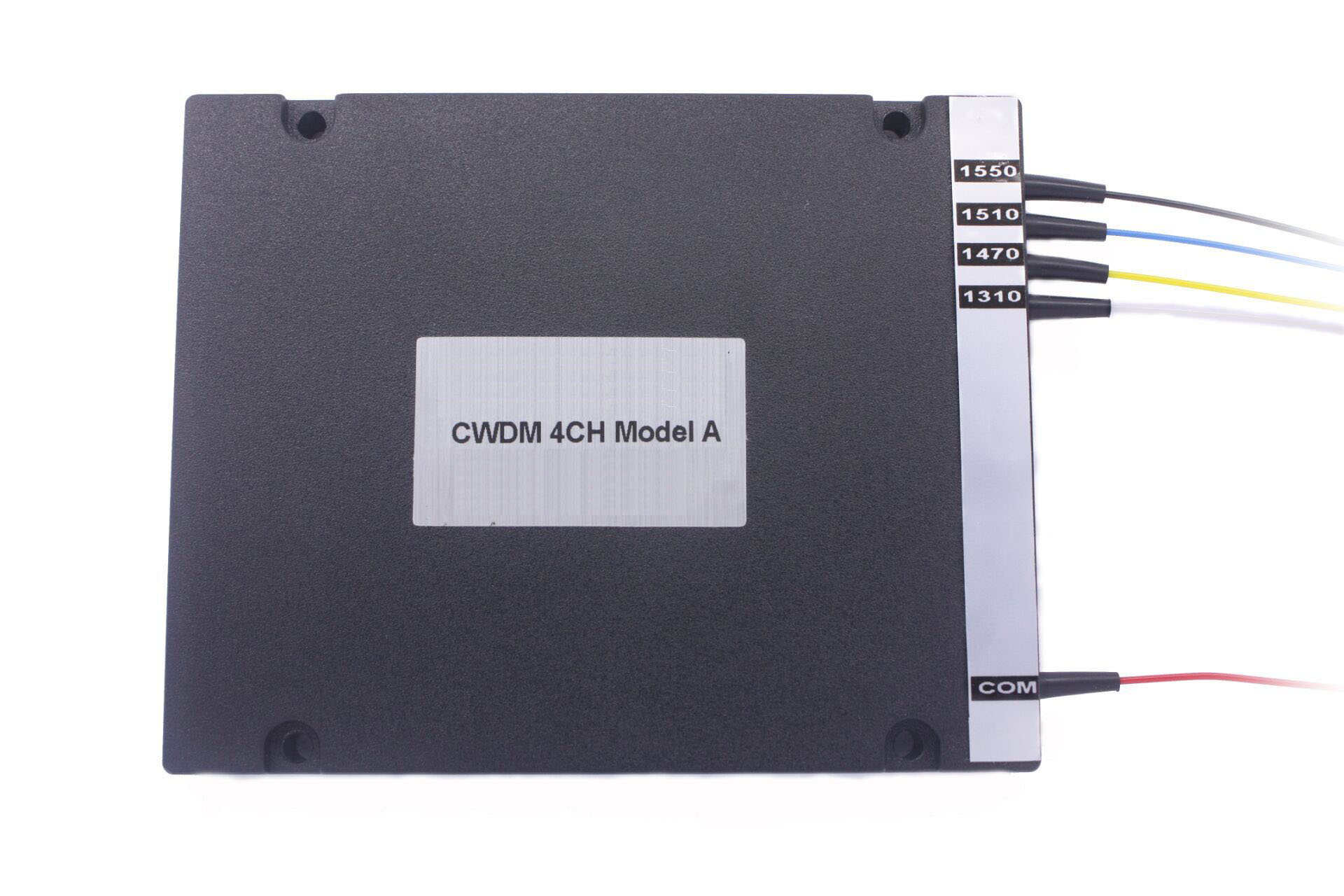

ISO9001 black Plastic black box for installing fiber optic compents Images
